Does Newheek have a simple and easy photographic bucky stand

Does Newheek have a simple and easy photographic bucky stand?

The photographic bucky stand is suitable for examining the head, chest, abdomen, pelvic cavity, limbs and other parts of the human body.
Sometimes the environment is not easy to carry, for example, the army or disaster resistant areas. Under Newheek, a suspended photo holder can meet the needs, simple and light.
The device is composed of a column, a sliding frame, a chip holder and a balancing device. It is suitable for different sizes of dark box, CR IP board and (no) line flat panel detector DR.
Main technical parameters
1. The total height of the photo frame is 1500mm (customizable 1800mm).
2, photo frame width 455mm;
3. The minimum travel time of the cassette is 1000mm.
4. Maximum photographic size: unrestricted (adjustable clip spacing).
5, installation method: hanging on the wall (recommended distance from the ground 500mm)

Its appearance design is simple, easy to install, easy to operate, easy to disassemble, easy to carry, compared with other photographic shelves its small size, light weight, can save transportation costs for users. It has a unique L-type rotary handle design, convenient for the operator to move up and down the car, it also has the advantages of protective cushion design, easy to find the focus. The card slot width of 35 mm is designed to be suitable for different sizes of dark box, CR IP board and (no) line flat panel detectors.

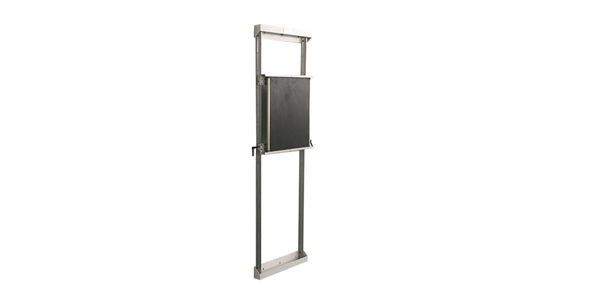

vertical wall bucky
