Vertical Cassette Holder: A Space-Saving X-Ray Accessory

Author:

　　A vertical cassette holder is a wall-mounted or floor-standing X-ray accessory that holds the film cassette (and, in modern setups, the CR IP board or flat panel detector) upright during radiography. It is used for chest, spine and abdominal examinations where the patient stands in front of the cassette.

　　Why use a vertical cassette holder?

　　The main advantage of a vertical cassette holder is that it frees the radiographer’s hands. Instead of holding the cassette or asking the patient to lean against it, the holder keeps the film at a fixed position, aligned with the X-ray tube. This improves image consistency and reduces retakes — an important factor in busy radiology departments.

　　Types of vertical cassette holders

　　1.Wall-mounted cassette holder — fixed to the wall, takes almost no floor space, ideal for small clinics.

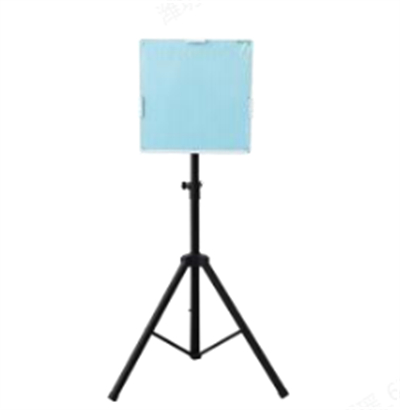

　　2.Mobile cassette holder — mounted on medical casters, can be moved between examination rooms.

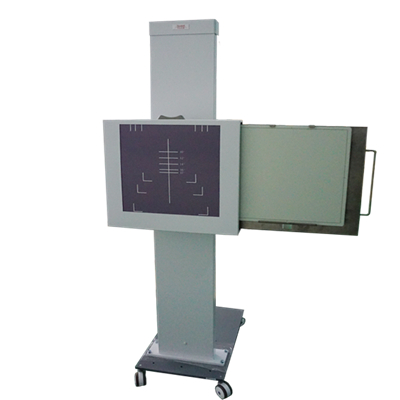

　　3.Height-adjustable holder — the cassette clip moves up and down to match the patient’s height.

　　Key specifications to check

　　Film size supported: most holders accept 14″ × 17″ cassettes; some also take 17″ × 17″ for flat panel detectors.

　　Height range: a typical vertical cassette holder has a 300–1600 mm lifting range.

　　Grid compatibility: check whether a removable 10:1, 103 lines/inch grid can be fitted to reduce scattered radiation.

　　Buying tips

　　For a clinic that performs chest X-rays daily, choose a wall-mounted vertical cassette holder with a 10:1 grid — it saves space and improves image quality. For hospitals with multiple exam rooms, a mobile holder is more flexible. Newheek supplies both types, factory-direct with ISO 13485 and CE certification, and all models support 14″ × 17″ film as standard.
