Erect Bucky Stand: Definition, Types & Buying Guide
Author:
An erect bucky stand is a vertical X-ray accessory used with a bucky machine to image the head, chest, abdomen, pelvis and limbs. The erect bucky stand is built around a support column, slider, cassette holder and grid, and accepts cassette sizes of 14″ × 17″ and 17″ × 17″ (the latter also fits CR IP boards and flat panel detectors). It comes in two main types: fixed erect bucky stands, which are bolted to the floor 180 cm from the X-ray tube, and movable erect bucky stands on medical casters, which can be positioned anywhere in the examination room. This guide explains how each type works and what to check before you buy.

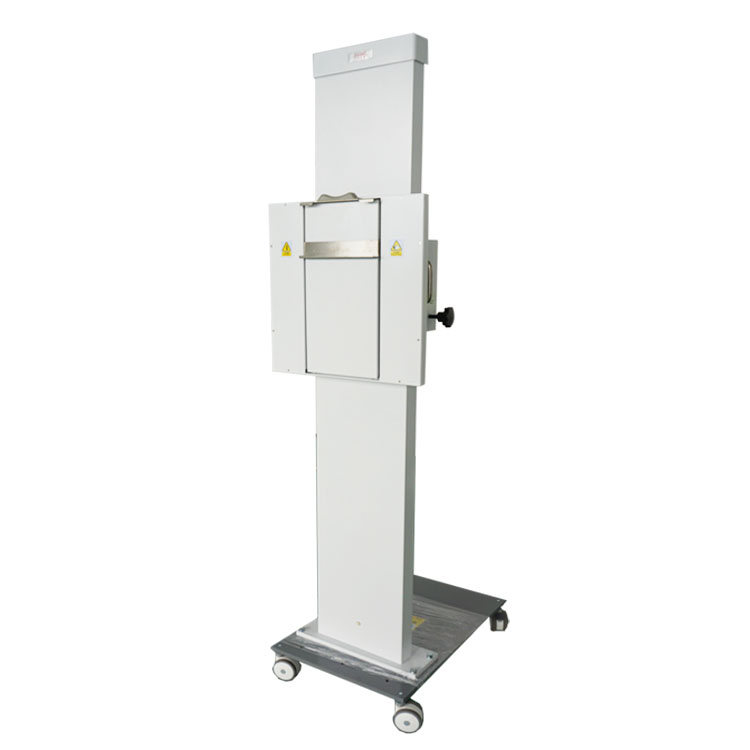

Movable (Mobile) Erect Bucky Stand
Erect bucky stands is mainly composed of pillars, slider, cartridge, arm and so on. Generally, the size of cartridge is 14 “X17” and 17 “X17”. Among them, the 17 “X17” frame can be equipped with different sizes of cassette, CR IP board and flat panel detector.
Erect bucky stands has fixed erect bucky stands and movable erect bucky stands. Fixed erect bucky stands places the camera holder on the flat hard ground 180 cm away from the spherical tube, makes the vertical center of the camera box coincide with the center of the spherical tube, aligns with the four through-hole centers of the bottom of the device’s column, and installs four M 8 expansion screws by electric hammer drilling. Then tighten and fix on the ground. The movable erect bucky stands has more movable devices than the fixed erect bucky stands. The high strength anti-winding mute medical wheel is used to facilitate the movement of the erect bucky stands in all directions.
There are also two ways of raising and lowering the cartridge of the erect bucky stands: electric and manual. The moving of the cartridge of the manual erect bucky stands can be adjusted to the right position by rotating the knob, loosening the cartridge and adjusting it to the right position. The electric erect bucky stands can automatically rise and fall by pressing the button, and then loosen the button when it reaches the right position.
FAQ：
Q: What is the difference between a fixed and a movable erect bucky stand?
A:The fixed vertical Bucky frame is fixed to the ground and cannot be moved (it is more stable and cheaper). The mobile version with wheels can be pushed around at will (it is more flexible but slightly more expensive).
Q: What cassette sizes does an erect bucky stand support?
A：The vertical Bucky frame typically supports the largest 17″×17″ (43×43cm) cassette, with the minimum size being approximately 8″×10″, and is compatible with various intermediate sizes (such as 14″×17″) as well as CR/DR detectors.
Q: Can an erect bucky stand work with a DR flat panel detector?
A：Yes, most modern erect Bucky stands are compatible with DR flat panel detectors (as well as traditional cassettes and CR plates). Many models have adjustable holders designed specifically for wireless or wired DR panels.
